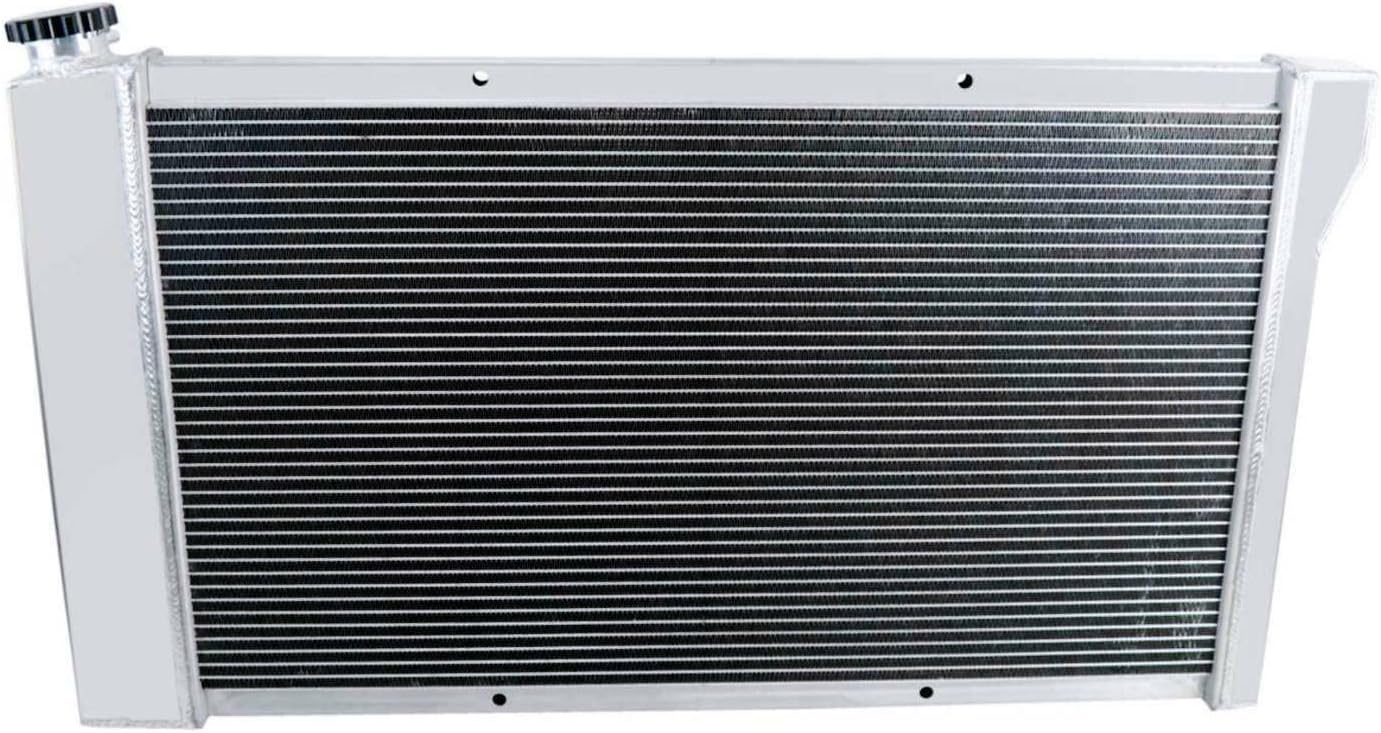

3 Row Aluminum CU369 RR369N Radiator for 1967-1972 Chevy/GMC C10 C20 C30 K10 K20 K30 Pickup Trucks AT/MT V8 GAS Performance Engine Cooling Radiators Shroud 2x12" Fans Thermostat Relay Kit

FitmentFor chevy C/K Series C10 C20 C30 K10 K20 K30 Pickup 1967-1972For chevy Blazer 4.1L 4.8L L6/5.0L 5.7L V8 1969-1972For chevy G10/G20/G30 Van 3.8L 4.1L 4.8L L6 1969-1971For chevy P10/P20/P30 Van 4.1L 4.8L L6 1971-1972For GMC C Series Pickup/Suburban Base 1967-1972For GMC G25/G1500 G25/G2500 G35/G3500 Van 3.8L 4.1L L6 1969-1971For GMC Jimmy 4.1L 4.8L L6 1970-1972For GMC K15/K1500 K25/K2500 K35/K3500 1967-1972Package Include:1 X 3-Row Aluminum Radiator(Includes Radiator Cap)1 X Aluminum Shroud2 X 12" Fans(Includes mounting kits)1 X Thermostat Relay KitRadiator DetailsRow Count: 3 RowCore Size: 28.23" H x 16.06"W x 1.73"TOverall Size: 34.06" L x 19.09"W x5.91"HInlet/Outlet: 1.50"/1.75"Transmission oilcooler: IncludeOil Cooler: φ26*305*G1/4(Z)Performance: Up to 30%~45% More CoolingRadiator Crafts:100% welded by TIG, No EpoxyPlacement on Vehicle: Engine CompartmentMounting Style: Bolt-OnFitment Type: Direct ReplacementSurface Finish: Aircraft Grade Raw Aluminum Tank & CorePetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFans SizeMaximum Fan CFM: 2300±200 cfmFan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsFThermostat KitRED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Part NumberManufacturer Part Number: DPI369, CC369, CU369, 0369AA, 369, MC369Interchange Part Number: 369,CU369, R369, RR369, DRMC369, MC369Other Part Number: RA-CK67-3, RA-CK67-2,8010369, 433366

• 3 Row Core Radiator for 1967-1972 Chevy C/K Series C10 C20 C30 K10 K20 K30 Pickup Blazer G10/G20/G30 P10/P20/P30 Van, for 67-72 GMC K15/K1500 K25/K2500 K35/K3500 C Series Pickup Suburban Jimmy Base G25/G1500 G25/G2500 G35/G3500 Van
• Core Size: 28.23" H x 16.06"W x 1.73"T; Overall Size: 34.06" L x 19.09"W x5.91"H; Inlet/Outlet: 1.50"/1.75"; Transmission oilcooler: φ26*305*G1/4(Z)
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
